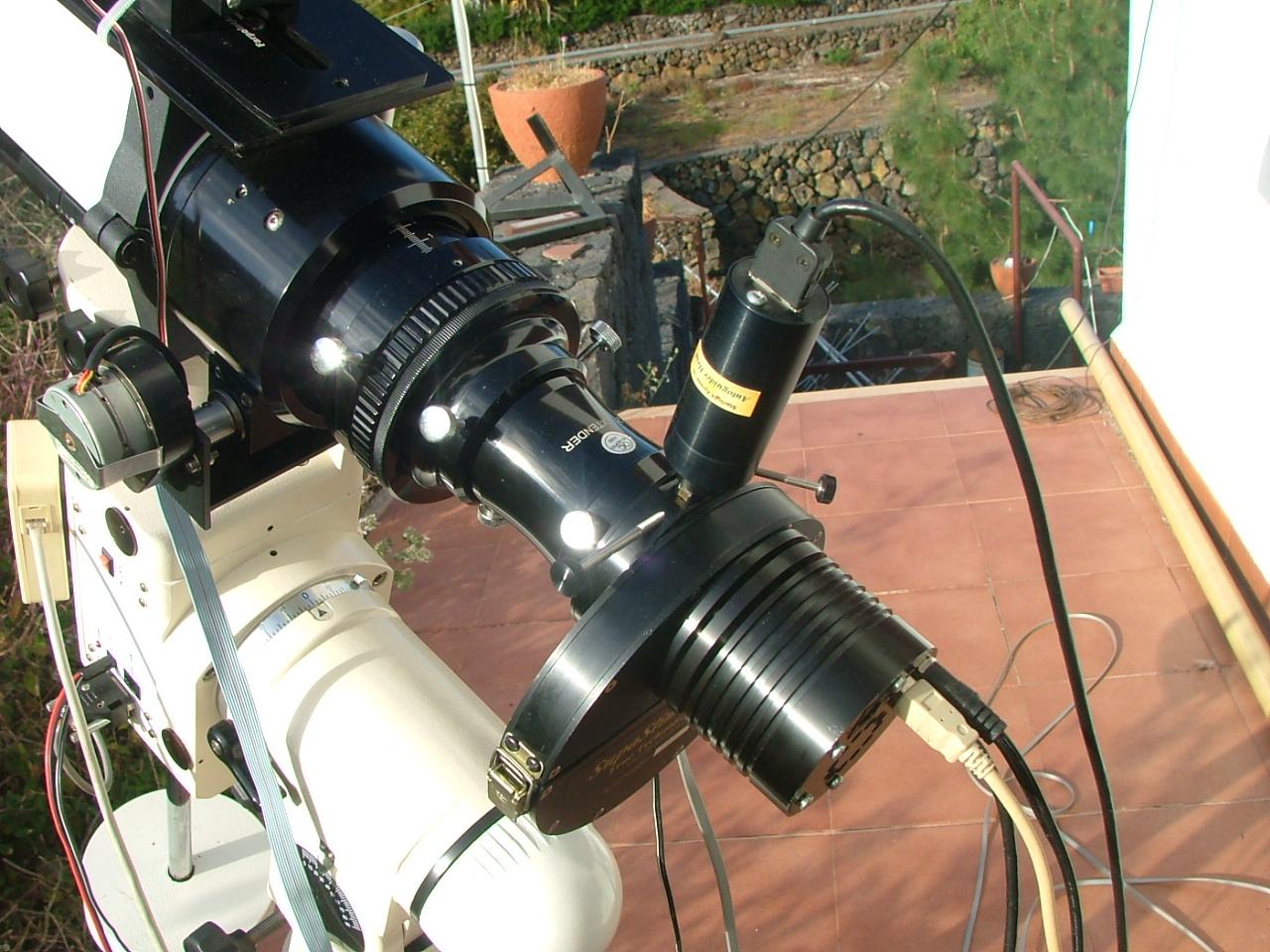

The 'Business End' of my imaging setup from a different viewpoint

Showing the SX OAG unit with SXV guide head attached to the True Tech filter wheel along with a 2" barrel extender.

Note - the SXVR-H9 needs to be as close to the filter wheel as possible else its impossible to make both the main imaging camera and the guider parfocal. There was a locking ring supplied with the M42 'T2' to SCT 48 adapter to mount the camera, but that had to be removed to bring the camera closer to the filter wheel.
